Whether your haematology testing takes place in a laboratory, a physician’s practice lab, on a hospital ward or in any other rapid-response diagnostic setting, it should always be excellent.

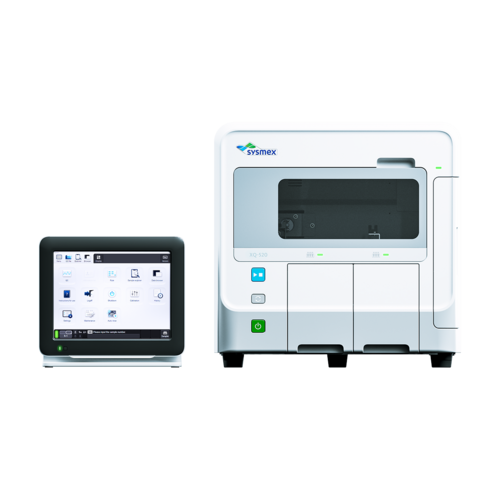

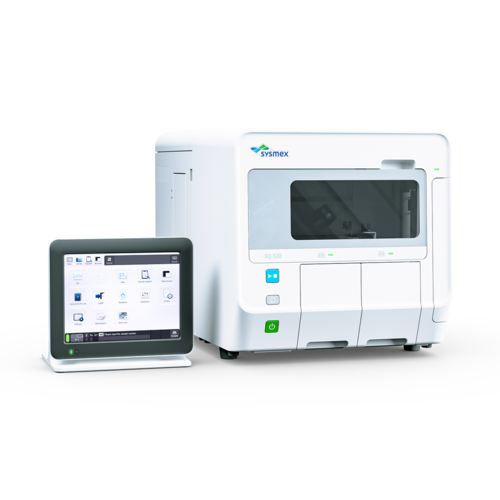

XQ-520 is the new closed tube three-part differential analyser from Sysmex with two independent samplers that can be loaded individually for continuous operation. Further, samples in single closed tubes or microtubes can be easily measured as well.

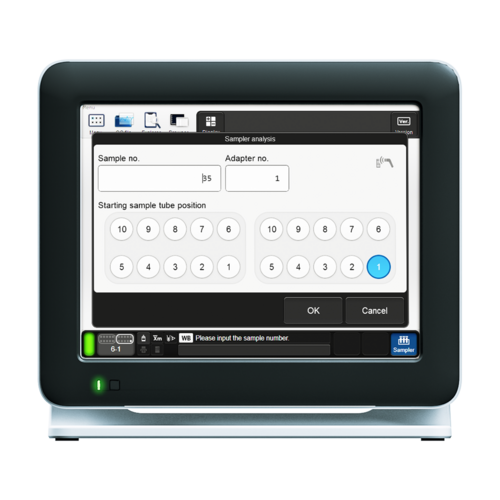

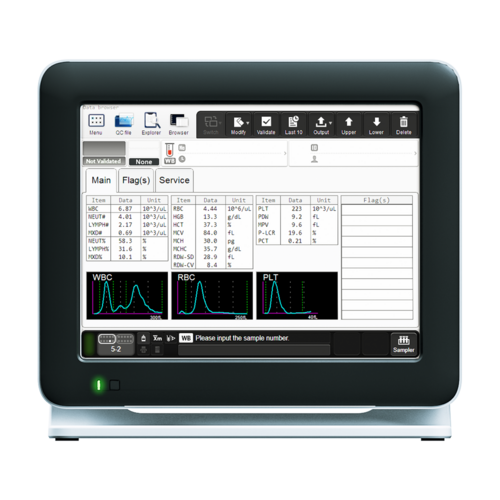

Numerical values, histograms and flags on one screen enable a convenient result interpretation while the advanced QC settings of XQ-520 support you in fulfilling your regulatory requirements.

Technical specifications
Model name / configuration XQ-520 / stand-alone sampler model
Measurement principles DC detection method (WBC, RBC/PLT)
non-cyanide haemoglobin detection method (HGB)
Aspiration volume 16 μL in whole blood mode, 65 μL in pre-dilution mode
Throughput 65 samples/h
Parameters 20 diagnostic parameters in whole blood mode and pre-diluted mode: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYMPH% (W-SCR), MXD% (W-MCR), NEUT% (W-LCR), LYMPH# (W- SCC), MXD# (W-MCC), NEUT# (W-LCC), RDW-SD, RDW-CV, PDW, MPV, P-LCR, PCT
Quality control 99 files with 300 data sets and Levey–Jennings charts (internal QC)
Caresphere™ XQC online interlaboratory comparison based on internal QC
Patient sample-based quality control (XbarM)
Dimensions /weight [w x h x d] approx. 450 x 450 x 660 mm / 41 kg
