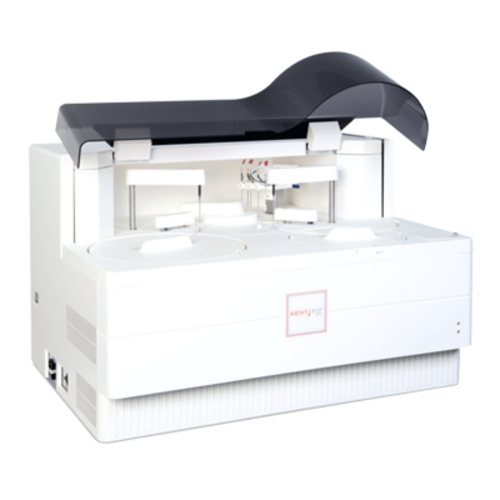

SENTiFIT 270 Analyser

Analysing faecal samples is an important diagnostic procedure/measurement in determining intestinal disorders or diseases. A positive result might indicate a serious disease such as colorectal cancer (CRC), whereas a negative result may help to exclude such diseases. Quantitative faecal immunochemical tests (FIT) show a performance superior to conventional qualitative tests and answers laboratories’ need for automation and traceability. Testing of symptomatic populations within the scope of decentralised screening programmes as well as symptomatic patients in all hospitals or clinical laboratories requires a reliable, fast, and cost-efficient solution with little hands-on time.

With the SENTiFIT 270 Analyser, together with the pierceable tubes for sample collection and analysis, and next-generation immunological latex reagents, Sysmex offers a fully automated stand-alone clinical-chemical system for measuring faecal immunochemical tests with superior performance and an excellent price/quality ratio. The SENTiFIT 270 Analyser is a highly reliable solution, suitable for FIT testing of asymptomatic populations within the scope of decentralised screening programmes as well as symptomatic patients in all hospitals or clinical laboratories.

The SENTiFIT 270 Analyser for medium throughput of up to 270 tests/hour has fast and continuous sample loading and high on-board reagent stability. With the single-step analysis on this high-speed instrument, you can gain walk-away time, receive fast results and acquire cost-efficient solutions for your laboratory. The FOB Gold test fulfils the requirements set by the WEO CRC Screening Committee recommendations and several other country-based guidelines.

Safety with well thought-out technology

  • No sample preparation needed
  • Tube with pierceable lid that is secured by a tight seal
  • Automatic dilution if analyte concentration is elevated

Time savings from easy handling

  • Permanent cooling of reagents in the device
  • Adjustment to throughput with flexible reagent loading
  • Continuous loading of samples while measuring
  • Parallel measuring of different assays

SENTiFIT® and FOB GOLD® are trademarks in various jurisdictions, which are exclusively licensed to Sentinel CH. SpA.

Technical specifications


Clinical-chemical analyser for quantitative immunoturbidimetric identification of various antigens in stool samples


Up to 270 samples / hour

Dimensions / weight (B x H x D [mm/kg]

870 x 670 x 625/120

Supported measurements

Haemoglobin in stool (FOB Gold)
Calprotectin in stool (CALiaGold)

On- board reagent capacity

Up to 1250 tests

Tube identification

Bar code labelled tubes

Piercing function

Automatic piercing function


  • Automatic check interval
  • On-board stability of 30 days
  • Calibrator set, liquid and ready to use

Sample monitoring

  • Visualisation of reaction curve for each sample reaction
  • Automatic prozone check to avoid any false negative results

Main screen

  • One-button start: easy to use
  • Sample time processing: optimises workload
  • Sample tray monitoring: visual sample check
  • Reagent tray monitoring: automatic update of remaining tests

QC monitoring

  • Daily and cumulative QC graphs for trend monitoring
  • Export data file (CSV format) for statistical analysis
  • Liquid and ready-to-use positive and negative controls for reliable patient results

Washing station

  • 72 reading cuvettes, checked after every test
  • Semi-disposable cuvettes: reduced waste and costs
  • Acid and alkaline washing solutions: effective cuvette cleaning with no sample carryover

Reagent tray

  • Refrigerated for long on-board reagent stability
  • Automatic reagent barcode reader: saves time
  • Loading of multiple reagent vials (5x): high capacity for long working sessions
